Hydraulic controls
Option for coupler
A control kit for double-acting hydraulic couplers is available to equip excavators and mini excavators.
The components of the kit are available individually, please consult us.

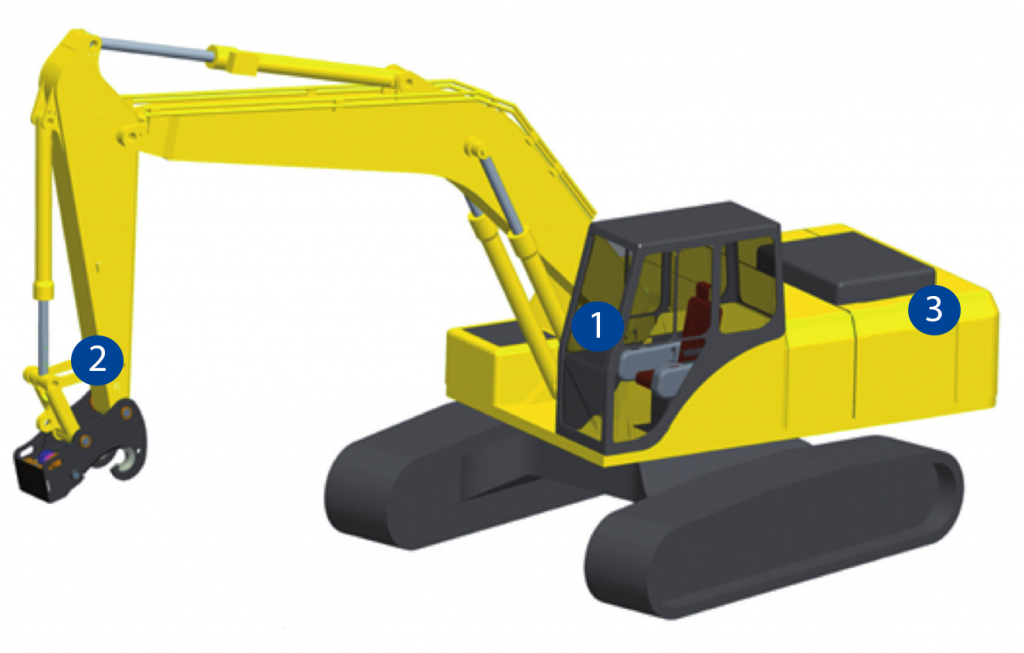

Kit composition:
![](https://acbplus.com/app/uploads/2022/02/Boitier-de-commande-hydraulique.png)

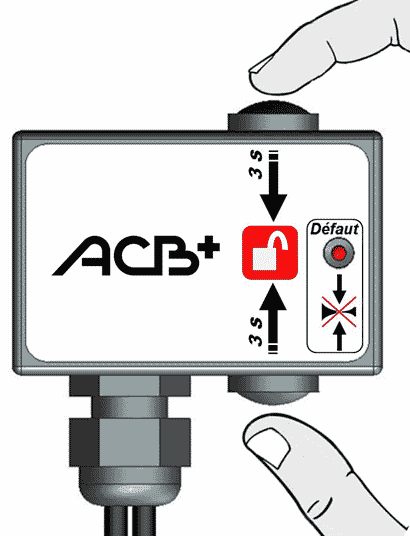

1 - Cabin control unit
- Complies with EN 474
- To be fixed on a window ( fixation supplied)
- Power supply 12-24 V DC (connection supplied)
![](https://acbplus.com/app/uploads/2022/02/1006502-1024x724.jpg)

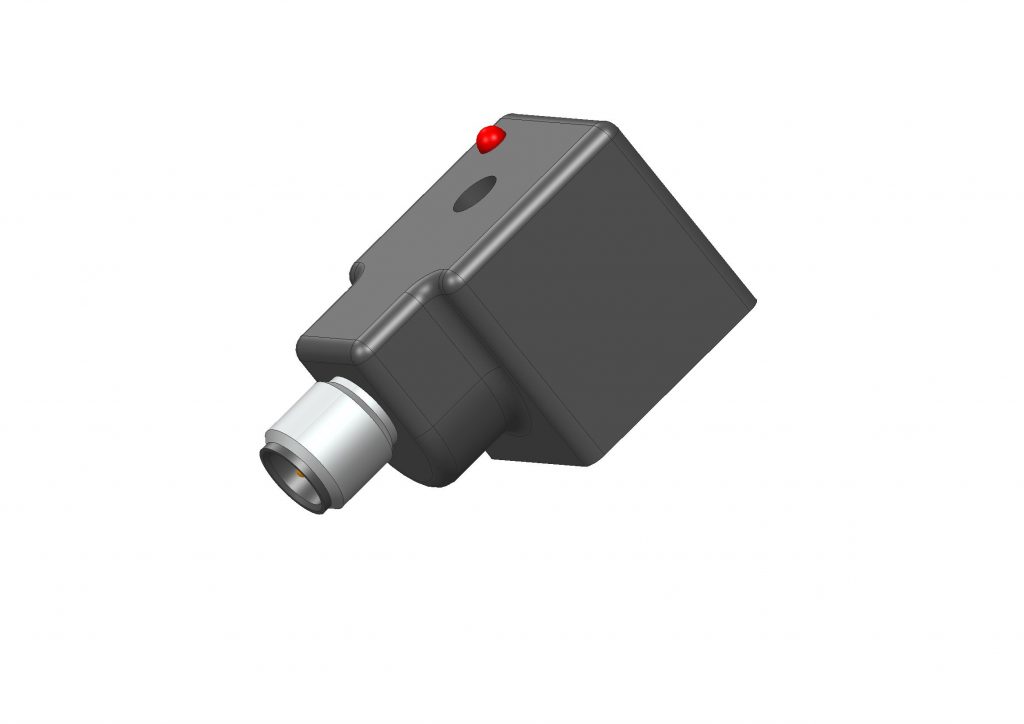

1 - 12 V output
- 12 V DC output on M12 connector and “HIRSHMAN” head supplied

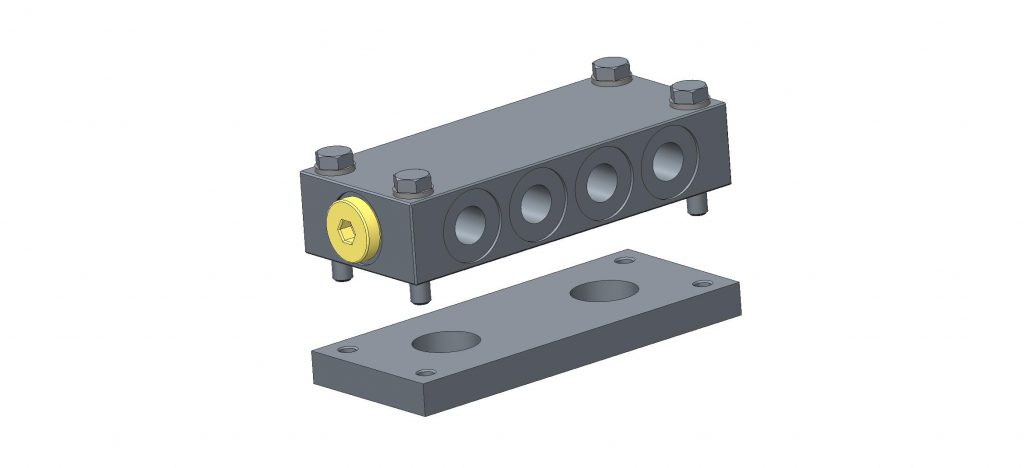

![](https://acbplus.com/app/uploads/2022/02/5102660-e1645380109327-1024x468.jpg)
2 - 2-way junction block for beam
- Pmax = 400 bars
- Removable zinc-plated steel body and weld-on base – 4 1/4″ BSP locations per channel allowing all connection configurations
![](https://acbplus.com/app/uploads/2022/02/1020316-1024x724.jpg)

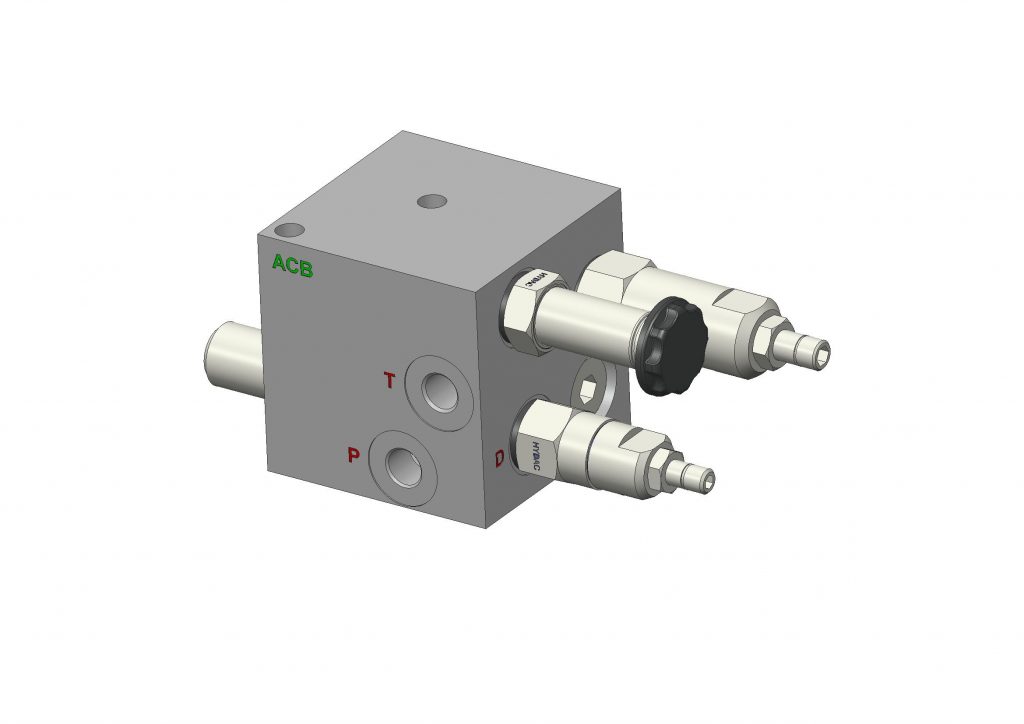

3 - Double acting hydraulic block
- Galvanized steel body
- Pmax = 400 bars
- 2 mounting holes diameter 9 mm
- 1/4″ BSP installation
- Supplied with 2 pressure control ports – Unlocking pressure regulated at 280 bar (factory set pressure)
- Locking pressure regulated to 45 bar (factory set pressure)
![](https://acbplus.com/app/uploads/2022/02/1020319-e1645380222296-1024x555.jpg)

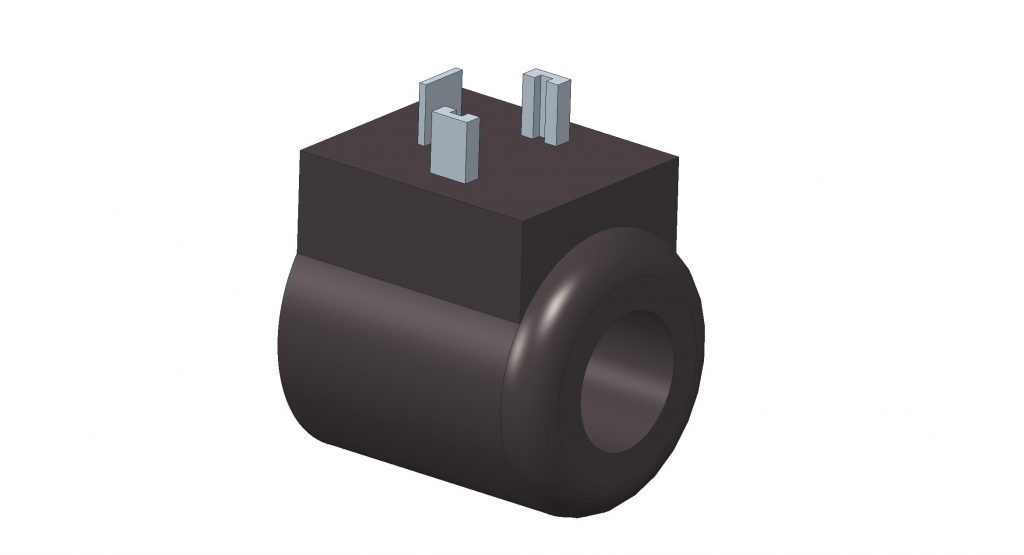

3 - Control coils
