Product guide for excavators

Cemetery bucket

M0 to M1 Carriers from 800kg to 3.5t

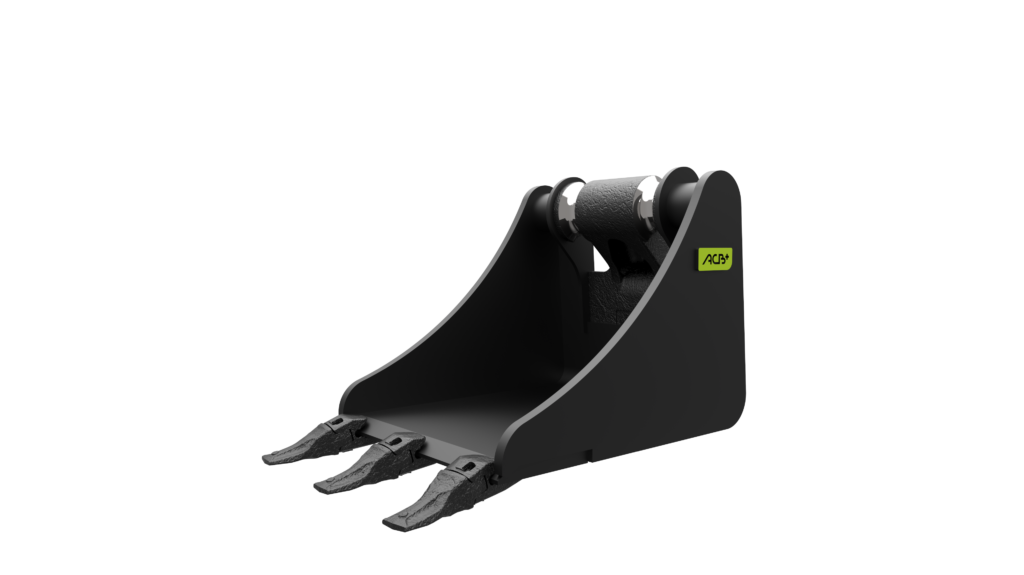

The cemetery bucket is used for work that needs a vertical wall to be dug very close to the machine. The cemetery bucket is typically used to dig graves, swimming pools or vertical cavities in a small space.

The bucket opens to a very wide angle and its capacity is increased by the flat part of the bottom.

Options and teeth for buckets

Available in systems

Technical data

This is an example of realization, all our tools are customizable, find out more.

Module Reference Width Capacity Weight Weight Coupler size
(mm) ISO (l) Bucket (kg)* Total (kg)
Module 0
Carriers from 800kg to 2t
Cemetery M0-400mm 400 25 35 80 M0S
Module 1
Carriers from 2t to 3.5t
Cemetery M1-400mm 400 47 64 149 M1S
