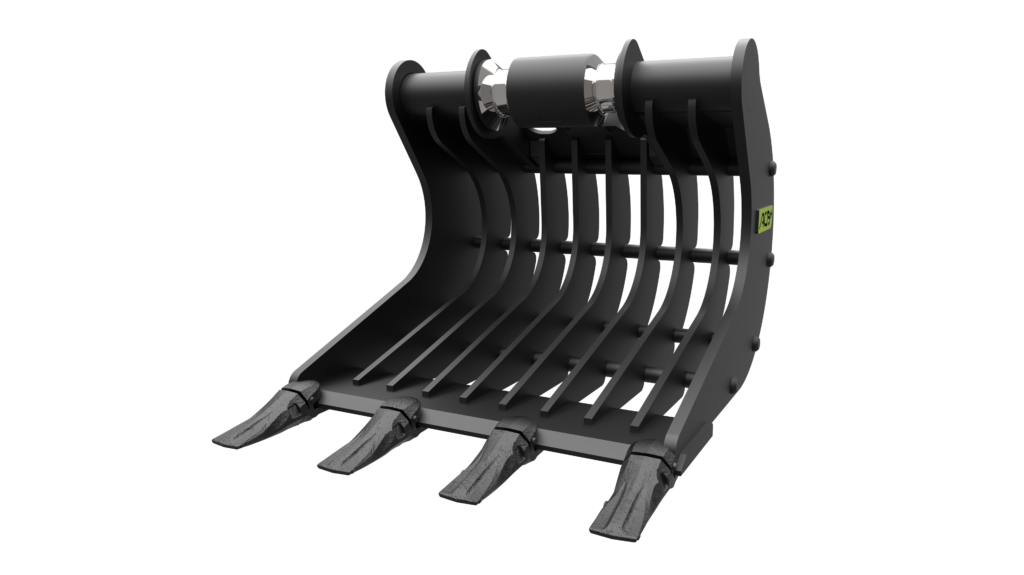

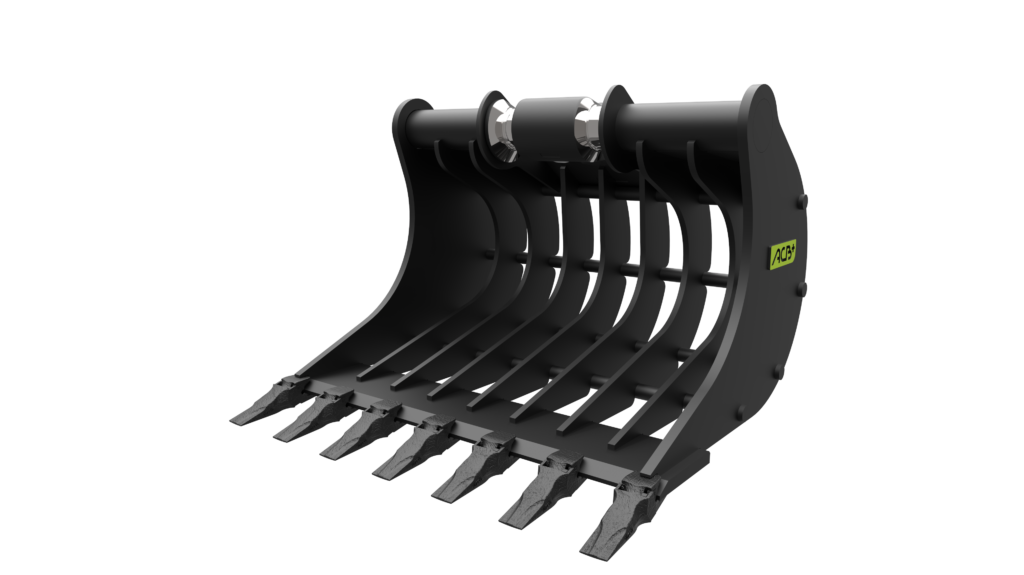

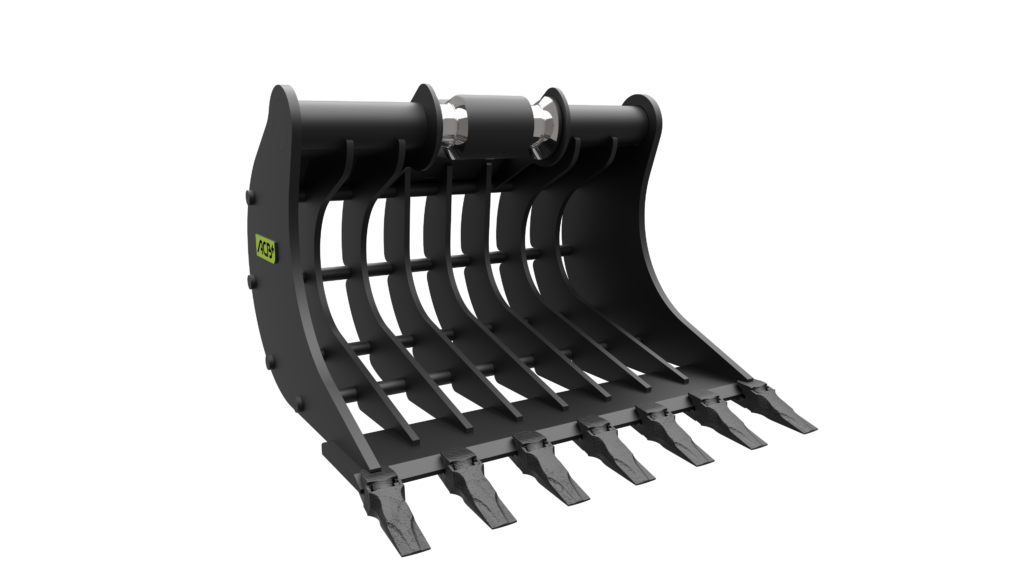

Skeleton bucket

M0 to M7 Carriers from 800kg to 35t

Skeleton backhoes are designed for the sorting, sifting and filtering of materials.
For example, you can remove cobblestones and separate them from the sand in which they were laid.
The bucket mesh is obtained by the spacing of the vertical webs and the gap between the horizontal bars.
An alternative to this construction is to make a grid:  a thick base is cut out to the dimensions of the mesh.
For this type of product, we propose one or two standard meshes, but tailored to meet your need is preferable.

The buckets are of conventional construction. They are particularly robust and have options and our expertise to order.
The skeleton backhoes have a minimum pitch of 50mm, unlike the grid backhoes which are not limited.

Options and teeth for buckets

Available in systems

Technical data

This is an example of realization, all our tools are customizable, find out more.

Module Profile Min. Width Max. Width Coupler size
(mm) (mm)
Module 0
Carriers from 800kg to 2t
P1N 500 1000 M0S
Module 1
Carriers from 2t to 3.5t
P1N 500 1000 M1S
Module 2
Carriers from 3.5t to 5.5t
P1N 500 1000 M2S
Module 3
Carriers from 5.5t to 7.5t
P1N 500 1200 M3S
Module 4
Carriers from 7.5t to 10t
P1E 500 1200 M4S
Module 5
Carriers from 10t to 15t
P1E 600 1300 M5S
Module 6
Carriers from 15t to 24t
P1E 700 1400 M6S
Module 7
Carriers from 24t to 45t
P1E 800 1600 M7S
