Product guide for excavators

Classic mechanical coupler M1S or hydraulic H1S coupler

M1 For carriers from 2t to 3.5t

Compliant with standards EN474-1 and ISO13031:2016

For your peace of mind, ACB+ is permanently involved in standardisation processes and actively contributes to European committees that draft standards. Thus our products comply with the latest versions of the regulatory texts.

Thus, ACB+ always offers the best performance with optimum safety for all its couplers, in particular by equipping them with a dual safety system that is protected by several patents.

As a major designer and manufacturer of tools and quick fasteners, ACB+ designs its couplers in the respect of the geometries imposed by the machine manufacturers. Thus, machine performance is entirely conserved.

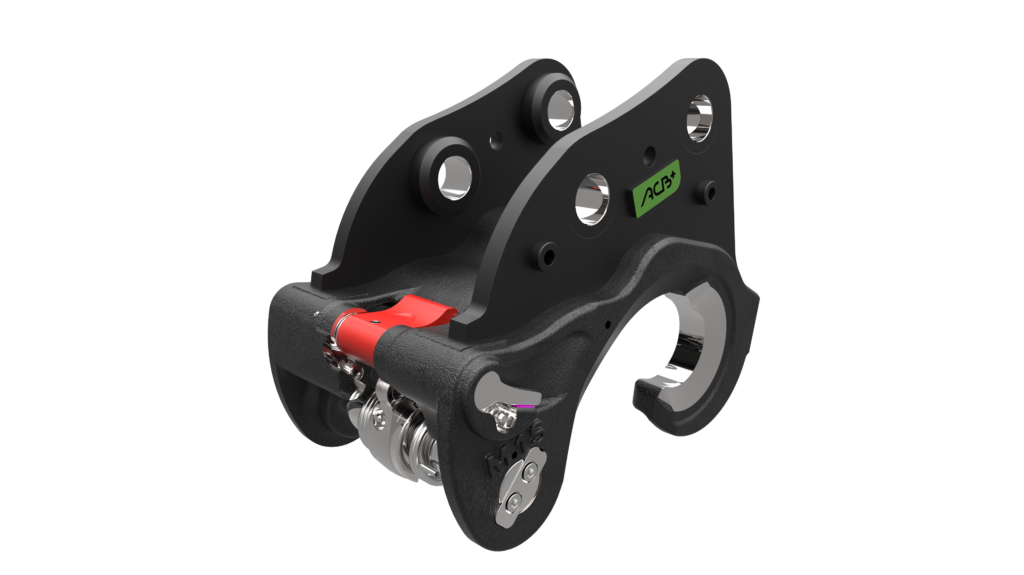

Advantages of the mechanical coupler M1S in the Morin Original system

  • Patented dual safety system
  • Functional play compensation
  • Identification facilitated by colour coding
  • Tools in the Morin Original system are automatically locked without leaving the cab

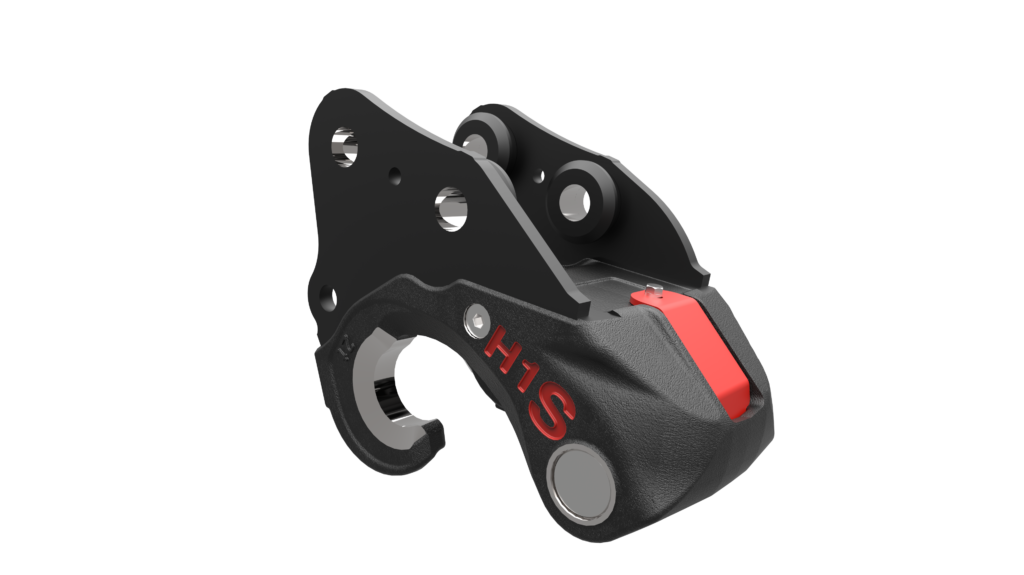

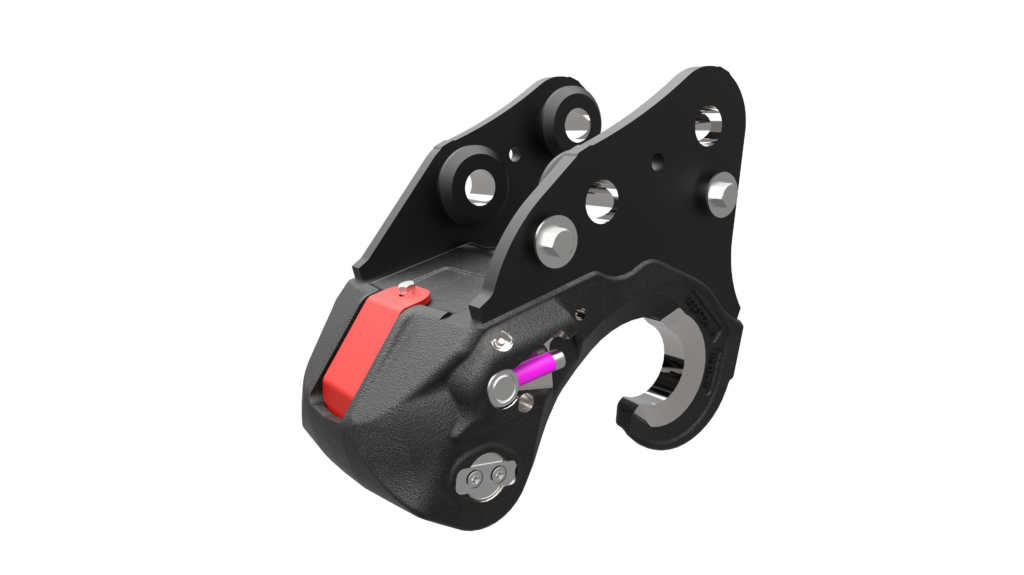

Advantages of the hydraulic coupler H1S in the Morin Original system

  • Patented dual safety system
  • High strength, one piece double action actuator
  • Functional play compensation
  • Tools in the Morin Original system are selected without leaving the cab
  • Identification facilitated by colour coding
Which coupler choose? Video

Available in systems

Description

Reliability: Robust coupler

The mechanical M1S and hydraulic H1S coupler is a high-strength steel casting which guarantees long periods of utilisation of the quick fastener. This hydraulic coupler has an enclosed structure, for optimum protection of the double action actuator. Like all the couplers in the Morin Original System, the M1S and H1S have functional play compensation between the tool and the quick fastener, while respecting the manufacturer’s kinematics. Which make it the essential coupler on the market.

Simple to use:

Only a few movements are needed to lock the tool.

For the mechanical coupler: Unlocking with the smart key unhooks the tool with a single action.

For the hydraulic coupler:  Unlocking by simply pressing the control unit in the cab unhooks the tool. In the case of a hydraulic problem, the H1S coupler can be unlocked using a standby key, thus providing service continuity

Easy identification of module:

The module is easily identified through the use of a colour code on the safety stop and on the unlocking key. This advantage is particularly appreciated in multi-module installations.

The module ident. is also engraved the couplers and tools.

The colour applied to the M1S and H1S couplers is red.

Compatibility:

The M1S and H2S coupler in Morin Original System are suitable for mini-excavators from 2 to 3.5 tons.

They are equipped with an integral lifting ring, designed to be used with the shackles recommended by ACB+.

All the tools in the Morin Original system M1, can be used with M1S and H1S couplers, which are pinned onto the machine with the original pins.

Additionally, ACB+ offers all the components necessary to equip the machine for the control of the hydraulic coupler in strict compliance with the applicable standards. These components are available individually or in a complete kit. Thus, it is possible to rationally pre-equip your machine, for trouble-free utilisation of your equipment in complete safety.

Link to control kits page

Double SAFETY SYSTEM:

The M1S and H1S couplers are compliant with standards EN474-1 and ISO13031:2016

The mechanical coupler M1S, like all the mechanical couplers in the Morin Original system, has a dual safety system comprising an:

  • Automatically activated stop that prevents any risk of cam backward movement – patented system
  • Cam equipped with the patented Form-lock system that prevents any risk of unlocking if the safety stop fails

The hydraulic coupler H1S, like all the hydraulic couplers in the Morin Original system, has a dual safety system comprising a:

  • Double-action hydraulic actuator, permanently pressurised, to hold the cam in the locked position
  • Cam equipped with the patented Form-lock system that prevents any risk of accidental unlocking

The overall system is equipped with an indicator that is visible from the cab, to visually confirm proper locking.

Technical data

Classic mechanical coupler M1S

Specification Value Value Units
Mechanical or hydraulic version Mechanical M1S Hydraulic H1S
Weight of carrier vehicle 2 to 3.5 2 to 3.5 [t]
Max. Break Out Force (BOF) ISO* 29 29 [kN]
Approx. weight 35 44 [kg]
Max. locking pressure - 45 [bar]
Max. unlocking pressure - 280 [bar]
Max. lifting load on ring 2 2 [t]

* according to standard ISO6015:2006 Methods of determining tool forces
