Front and rear rake
M0 to M7 Carriers from 800kg to 35t

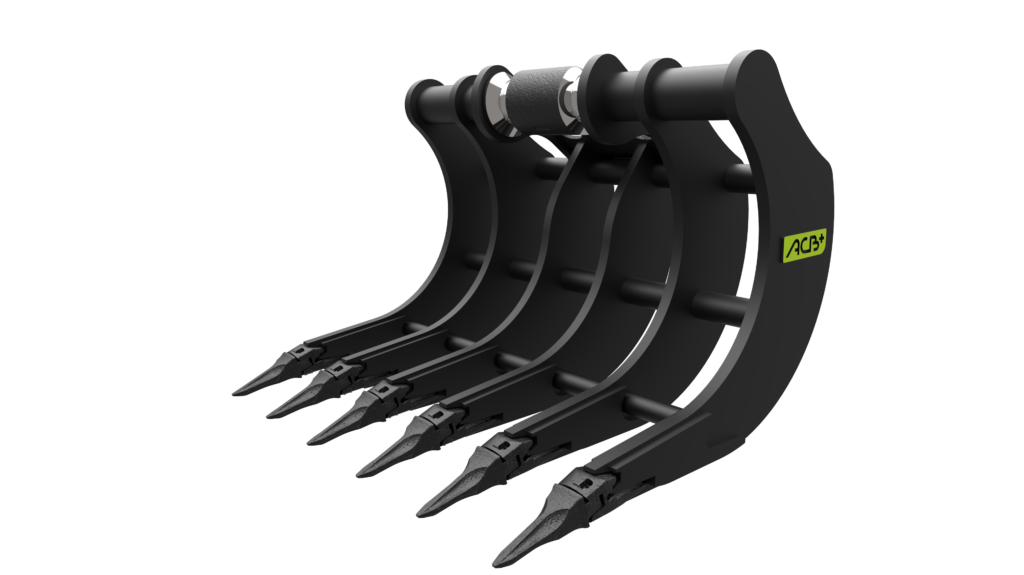

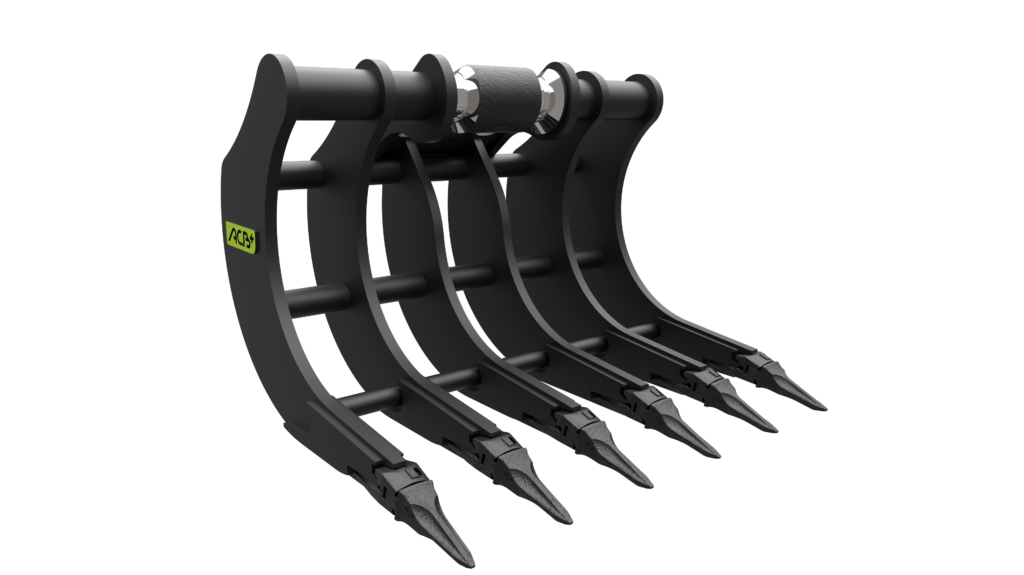

The front and rear rake is a multi-function forestry and landscaping tool.
This tool is built with wide, constant spacing, vertical webs, horizontally strengthened by crossbars and equipped with teeth, depending on the application. It is used for gripping, sorting and loading wood, stumps and other vegetable objects.
Its hollow shape allows you to both hold the load and scarify the soil, leaving a clean surface.
On the front and rear rake, the webs are extended on the other side, to enable working on both sides of the rake.
The rake bucket comprises a standard beam, with a series of vertical webs matching the rake profile and reinforced by horizontal strengtheners. It can also have teeth to order. Its opening and the constant web spacing mean that the product specification should be a function of your application. There is a scraper and backhoe version.
Available in systems
Front and rear rake bucket technical data
This is an example of realization, all our tools are customizable, find out more.
| Modules | Profile | Part number | Width | Weight | Number of claws | Pitch | Coupler size |
|---|---|---|---|---|---|---|---|
| (mm) | Bucket (kg)* | mm | |||||
| Module 0 Carriers from 800kg to 2t |
0E | GRAPPLE-0E-600 | 600 | 78 | 4 | 135 | M0S |
| Module 1 Carriers from 2t to 3.5t |
1E | RAKE-1E-600 | 600 | 80 | 4 | 135 | M1S |
| Module 2 Carriers from 3.5t to 5.5t |
2E | RAKE-2E-830 | 830 | 137 | 5 | 140 | M2S |
| Module 3 Carriers from 5.5t to 7.5t |
3E | RAKE-3E-1100 | 1100 | 369 | 6 | 130 | M3S |
| Module 4 Carriers from 7.5t to 10t |
4E | RAKE-4E-1140 | 1140 | 428 | 6 | 140 | M4S |
| Module 5 Carriers from 10t to 15t |
5E | RAKE-5E-1950 | 1950 | 1202 | 8 | 170 | M5S |
| Module 6 Carriers from 15t to 24t |
6E | RAKE-6E-1200 | 1200 | 977 | 5 | 173 | M6S |

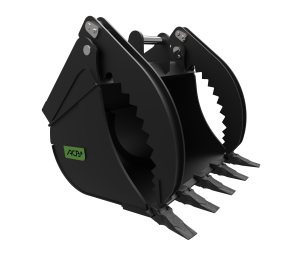

Dual grapple bucket technical data
This is an example of realization, all our tools are customizable, find out more.
| Modules | Profile | Part number | Width | Weight | Number of claws | Pitch | Coupler size |
|---|---|---|---|---|---|---|---|
| (mm) | Bucket (kg)* | mm | |||||
| Module 0 Carriers from 800kg to 2t |
0E | DUAL-GRAPPLE-0E-200 | 200 | 27 | 2 | 150 | M0S |
| DUAL-GRAPPLE-0E-550 | 550 | 86 | 6 | 73 | |||
| Module 1 Carriers from 2t to 3.5t |
1E | DUAL-GRAPPLE-1E-500 | 500 | 71 | 4 | 125 | M1S |
| DUAL-GRAPPLE-1E-880 | 880 | 126 | 4 | 90 | |||
| Module 2 Carriers from 3.5t to 5.5t |
2E | DUAL-GRAPPLE-2E-800 | 800 | 157 | 5 | 155 | M2S |
| DUAL-GRAPPLE-2E-1210 | 1210 | 23 | 10 | 100 | |||
| Module 3 Carriers from 5.5t to 7.5t |
3E | DUAL-GRAPPLE-3E-1000 | 1000 | 318 | 6 | 170 | M3S |
| DUAL-GRAPPLE-3E-1200 | 1200 | 332 | 6 | 210 | |||
| Module 4 Carriers from 7.5t to 10t |
4E | DUAL-GRAPPLE-4E-1200 | 1200 | 368 | 6 | 210 | M4S |
| DUAL-GRAPPLE-4E-1500 | 1500 | 179 | 8 | 186 | |||
| Module 5 Carriers from 10t to 15t |
5E | DUAL-GRAPPLE-5E-1200 | 1200 | 905 | 6 | 132 | M5S |
| DUAL-GRAPPLE-5E-1780 | 1780 | 1241 | 7 | 250 | |||
| Module 6 Carriers from 15t to 24t |
6E | DUAL-GRAPPLE-6E-1500 | 1500 | 1023 | 5 | 325 | M6S |
| DUAL-GRAPPLE-6E-2000 | 2000 | 1396 | 7 | 300 |
