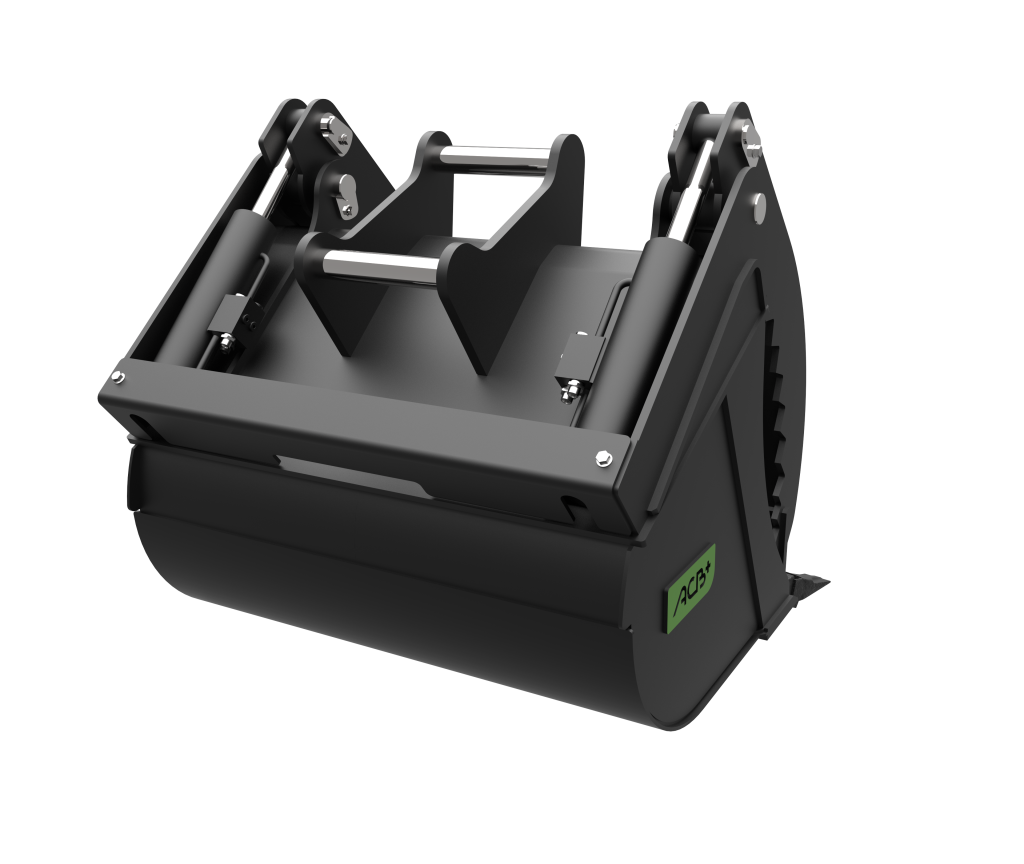

Grapple bucket
M0 to M7 Carriers from 800kg to 35t
The backhoe grapple bucket is an efficient bucket in all situations where the material is difficult to grip using a conventional bucket.

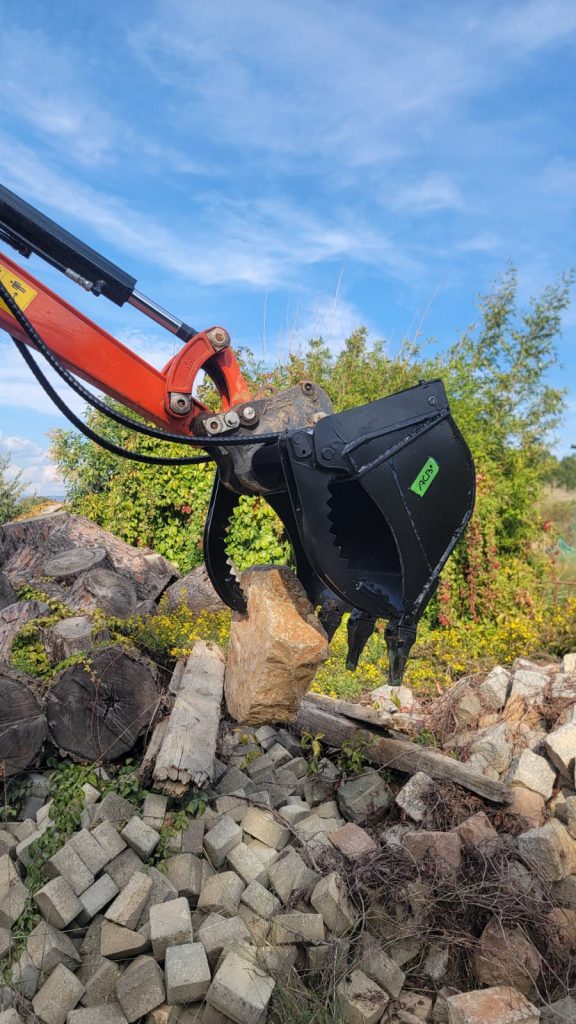

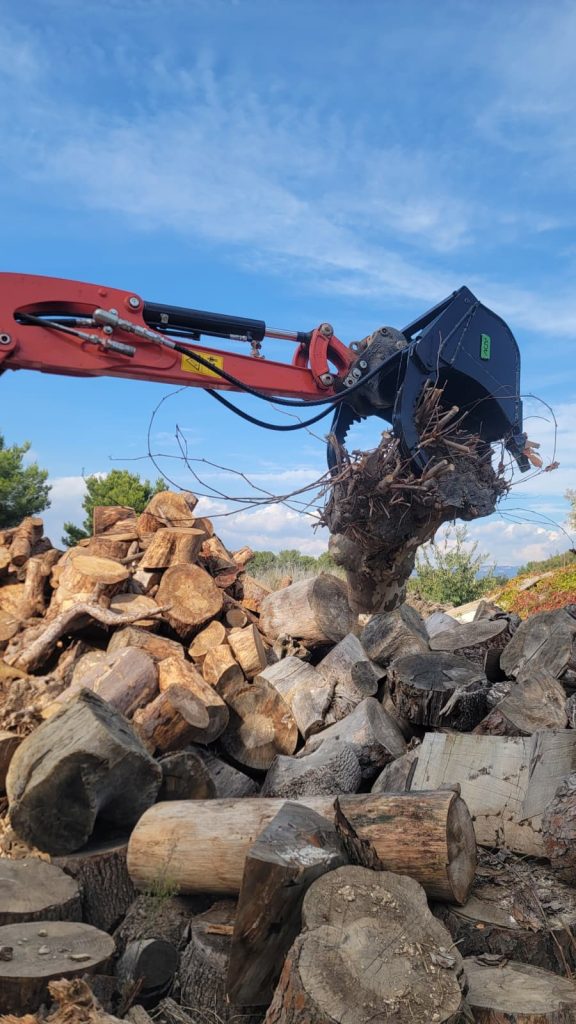

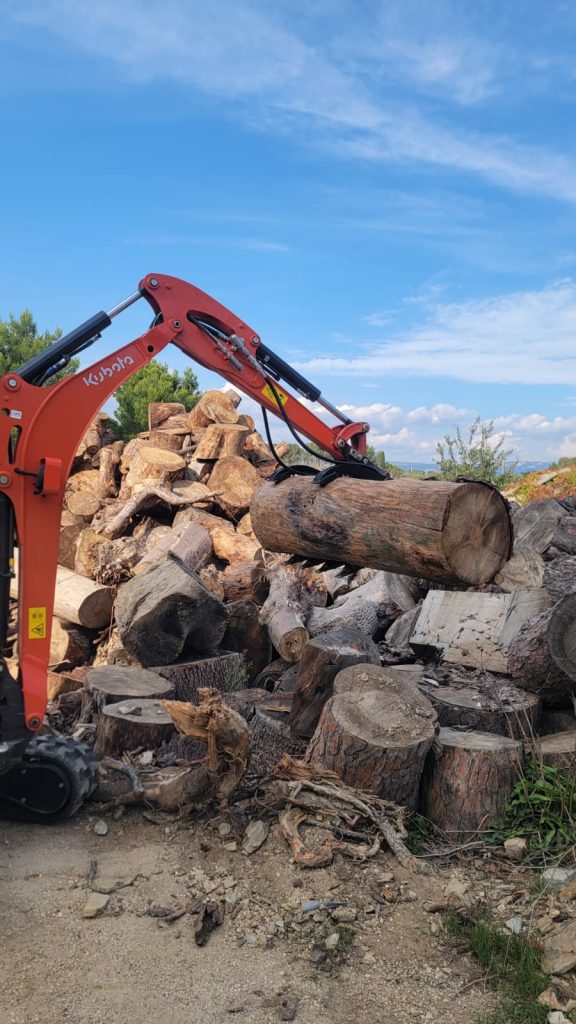

Two independent claws jam the material against the bucket for loading or rockfilling operations.
The backhoe grapple bucket is controlled by the excavator’s conventional ancillary line and the grippers are held in position by non-return valves.
By construction, there is a minimum width for this type of bucket. The basic profile is a backhoe bucket, but many options are available here, both on the grapples and on the actual bucket.
Available in systems
Technical data
This is an example of realization, all our tools are customizable, find out more.
| Module | Profile | Min. Width* | Max. Width | Coupler size |
|---|---|---|---|---|
| Module 0 Carriers from 800kg to 2t |
P1N | 500 | 700 | M0S |
| Module 1 Carriers from 2t to 3.5t |
P1N | 600 | 800 | M1S |
| Module 2 Carriers from 3.5t to 5.5t |
P1N | 700 | 900 | M2S |
| Module 3 Carriers from 5.5t to 7.5t |
P1N | 800 | 1000 | M3S |
| Module 4 Carriers from 7.5t to 10t |
P1E | 900 | 1100 | M4S |
| Module 5 Carriers from 10t to 15t |
P1E | 1100 | 1300 | M5S |
| Module 6 Carriers from 15t to 24t |
P1E | 1400 | 1500 | M6S |
| Module 7 Carriers from 24t to 45t |
P1E | 1750 | 1800 | M7S |
