Grid ditch cleaning bucket
M0 to M7 Carriers from 800kg to 35t
The grid ditching bucket allows materials to be sorted over a broad strip of land. It is designed for the sifting and sorting of mixed materials. The bucket mesh is adaptable to meet your needs.

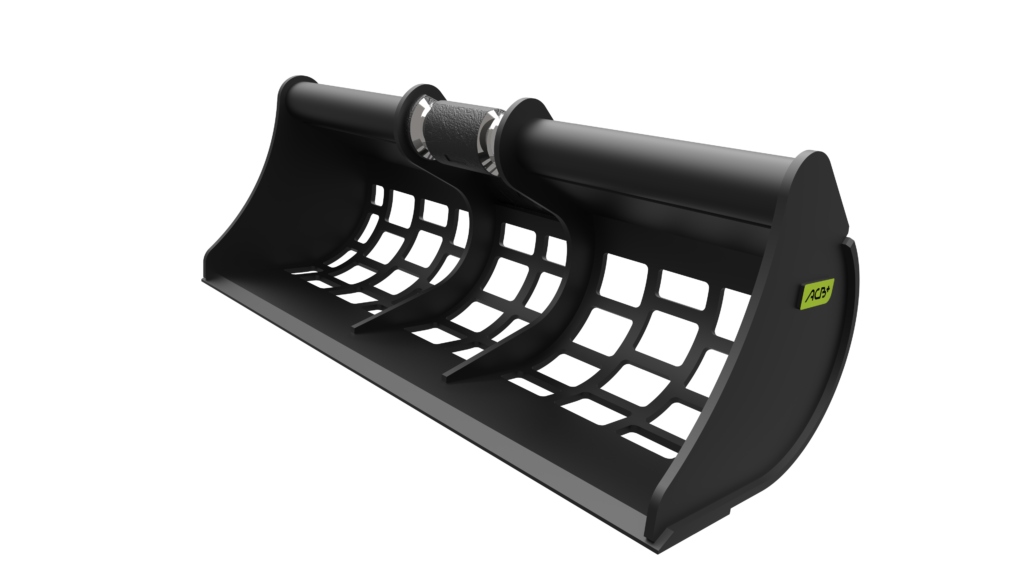

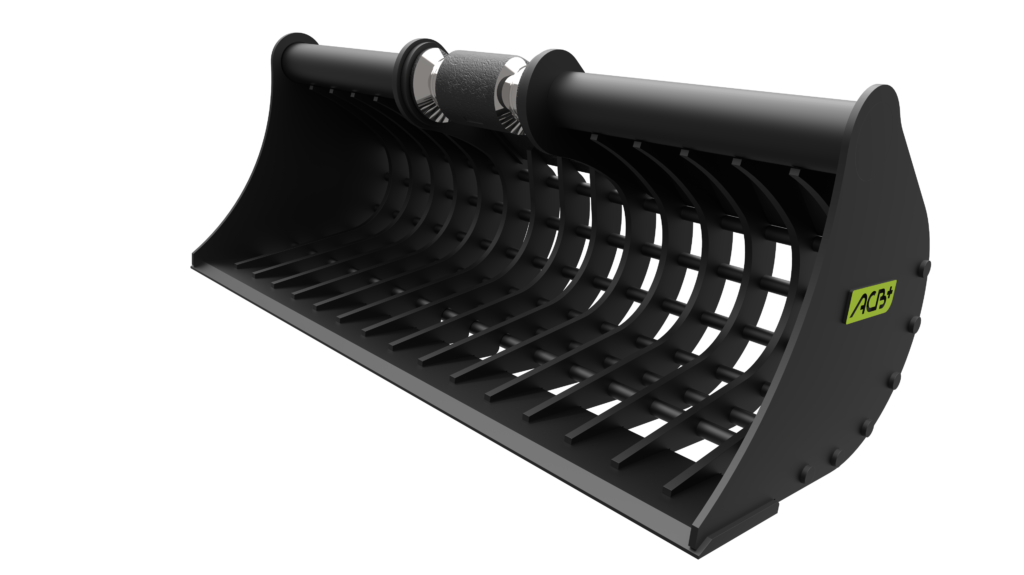

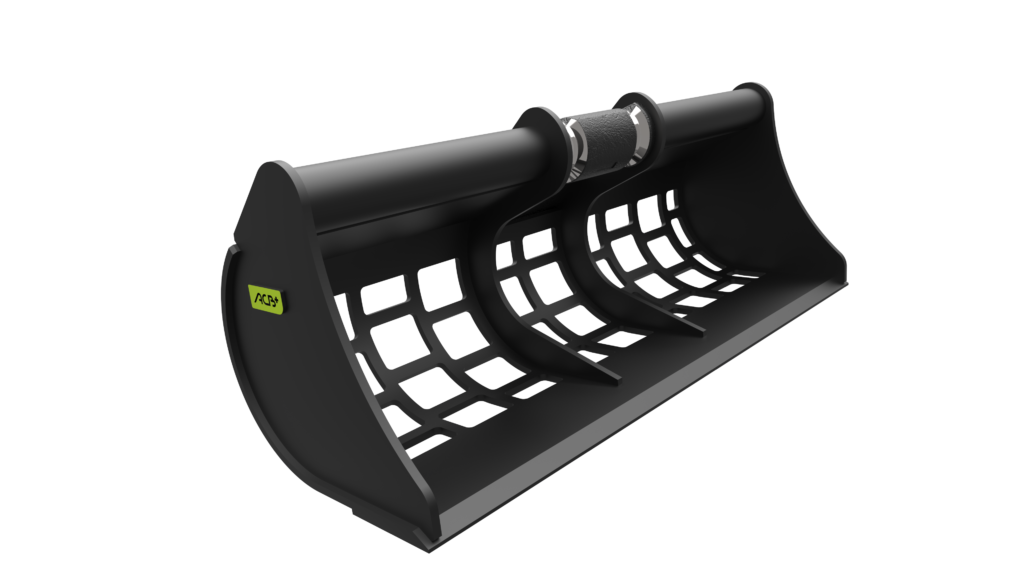

We have two construction formats for this type of bucket: one with a bottom sheet perforated to the desired mesh size, and another for which the mesh is given by the bucket profile webs, with a spacing that must be greater than 50mm. Counter-blades are available as an option.

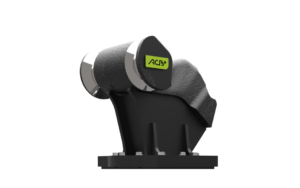

Available in systems
Technical data
This is an example of realization, all our tools are customizable, find out more.
| Grid ditch cleaning bucket | Min. Width | Max. Width | |
|---|---|---|---|
| Module 0 Carriers from 800kg to 2t |
0P1 | 600 | 1000 |
| 0P2 | 600 | 1200 | |
| Module 1 Carriers from 2t to 3.5t |
1P1 | 800 | 1400 |
| Module 2 Carriers from 3.5t to 5.5t |
2P1 | 1000 | 1500 |
| Module 3 Carriers from 5.5t to 7.5t |
CT3N | 1000 | 1800 |
| Module 4 Carriers from 7.5t to 10t |
4CP1E | 1400 | 2000 |
| Module 5 Carriers from 10t to 15t |
5CP2E | 1600 | 2200 |
| Module 6 Carriers from 15t to 24t |
6CP2E | 1800 | 2400 |
| Module 7 Carriers from 24t to 35t |
7CP2 | 2400 | 2800 |
