Product guide for excavators

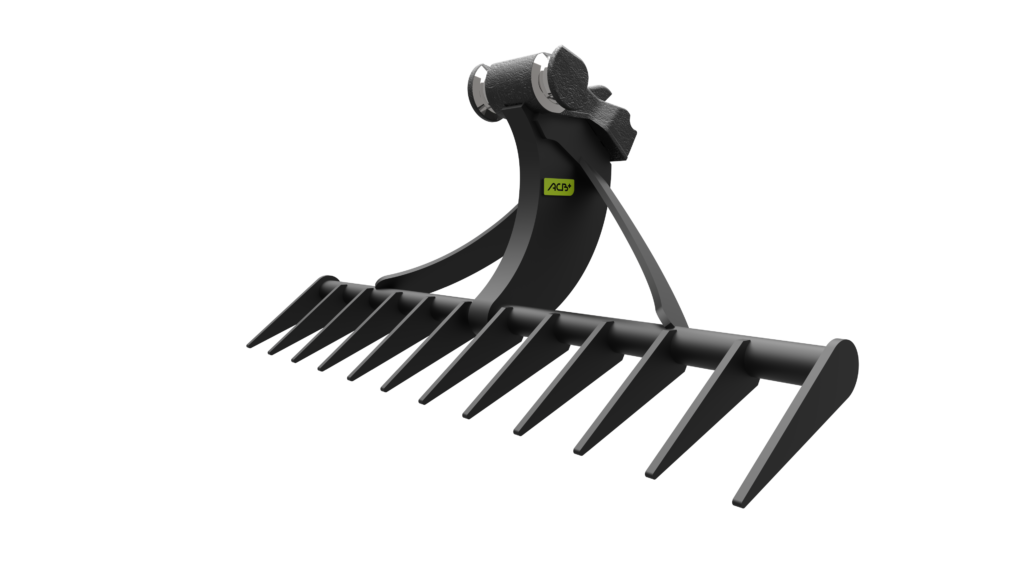

Rake
M0 to M4 Carriers from 800kg to 10.5t
The rake is intended for small landscaping finishing jobs: levelling, sorting of clods and ground materials, scarification and loosening.
Like the gardener’s rake, this tool comprises a beam on which pointed fingers are welded.
Available in systems
Production example
This is an example of realization, all our tools are customizable, find out more.
| Module | Part number | Width | Weight | Number of claws | Pitch | Coupler size |
|---|---|---|---|---|---|---|
| (mm) | Bucket (kg)* | (mm) | ||||
| Module 0 Carriers from 800kg to 2t |
Rake-0E-1200 | 1200 | 50 | 18 | 60 | M0S |
| Module 1 Carriers from 2t to 3.5t |
Rake-1E-1200 | 1200 | 50 | 18 | 60 | M1S |
| Module 2 Carriers from 3.5t to 5.5t |
Rake-2E-1400 | 1400 | 88 | 12 | 114 | M2S |
| Module 3 Carriers from 5.5t to 7.5t |
Rake-3E-1500 | 1500 | 161 | 12 | 120 | M3S |
| Module 4 Carriers from 7.5t to 10t |
Rake-4E-1400 | 1400 | 154 | 10 | 120 | M4S |
