Tilt ditch cleaning bucket 1 and 2 actuators
M0 to M7+ Carriers from 800kg to 50t

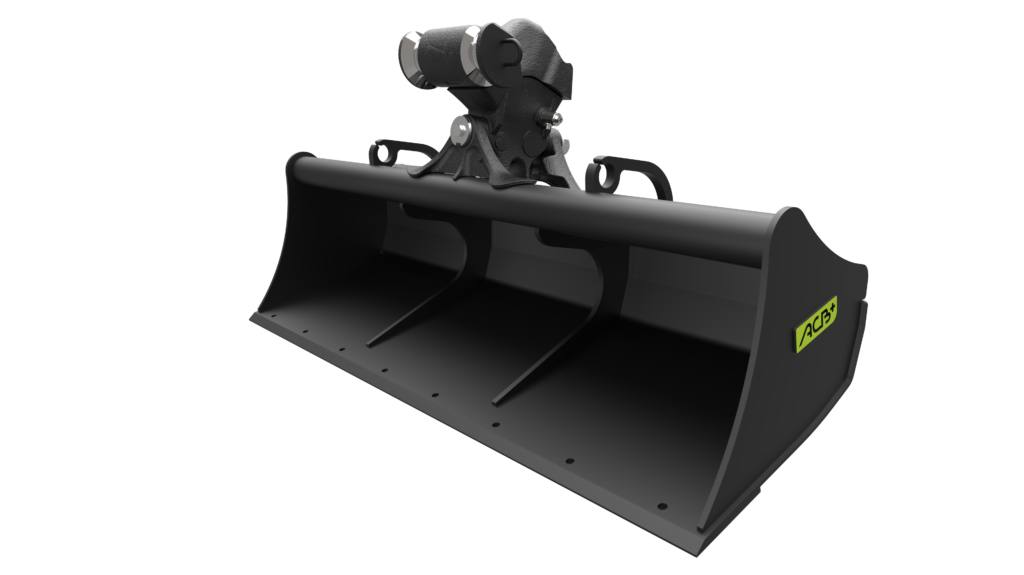

The tilt ditch cleaning bucket provides a greater degree of freedom. You can create slopes and surfaces that are inclined in relation to the machine tracks. It’s the ideal tool for road finishing, sloping and landscaping work.
Our 2×45° tilt ditch cleaning bucket have one or two actuators, depending on the size of the machine. They are linked to a heavy duty articulation system, with case hardened bushes and grease retaining seals. The castings used on both the head and the body ensure that our scrapers offer maximum strength and rigidity.
A reversible bolt-on counter blade can be added, to protect the main blade. For the larger machines, an optional rear blade provides additional bucket functions, with effective smoothing when the bucket closes and opens. A bucket position holding kit is available as an option if the machine distributor leaks.

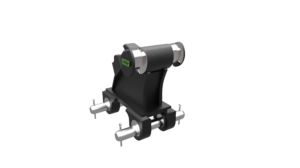

Available in systems
Technical data
-
Module 0 Carriers from 800kg to 2t
SMOOTH BLADE
Thickness 15mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 20mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 0IP1-1000 1 000 74 106 239 127 260 -
Module 1 Carriers from 2t to 3.5t
SMOOTH BLADE
Thickness 15mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 20mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 1IP1-1200 1 200 111 131 331 156 356 -
Module 2 Carriers from 3.5t to 5.5t
SMOOTH BLADE
Thickness 20mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 20mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 2IP1-1400 1,400 233 245 664 286 705 -
Module 3 Carriers from 5.5t to 7.5t
SMOOTH BLADE
Thickness 20mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 20mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 3IP1-1500-1V 1 500 325 302 887 346 931 3IP1-1600-1V 1 600 348 312 938 359 985 3IP1-1500-2V 1 500 325 315 900 360 945 3IP1-1600-2V 1 600 348 326 952 373 999 -
Module 4 Carriers from 7.5t to 10t
SMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 20mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR) + REAR BLADE (LAR)
Thickness 20mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 4IP1-1600 1 600 416 517 1 266 547 1 296 4IP1-1700 1 700 444 535 1 334 567 1 366 4IP1-1800 1 800 471 552 1 400 587 1 435 -
Module 5 Carriers from 10t to 15t
SMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 25mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR) + REAR BLADE (LAR)
Thickness 25mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 5IP1-1800 1 800 471 652 1 500 687 1 535 5IP1-2000 2 000 527 692 1 641 732 1 681 5CP1-1800 1 800 502 890 1 794 950 1 854 5CP1-2000 2 000 562 947 1 959 1 016 2 028 5CP1-2200 2 200 622 1 000 2 120 1 078 2 198 -
Module 6 Carriers from 15t to 24t
SMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR)
Thickness 25mmSMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR) + REAR BLADE (LAR)
Thickness 25mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) Bucket weight (kg) Total weight (kg) 6CP1-1800 1 800 502 932 1 836 992 1 896 6CP1-2000 2 000 562 991 2 003 1 061 2 073 6CP1-2200 2 200 622 1 045 2 165 1 122 2 242 6CP1-2400 2 400 682 1 140 2 368 1 225 2 453 6CP1-2500 2 500 712 1 190 2 472 1 280 2 562 6CP2-1800 1 800 744 990 2 329 1 053 2 392 6CP2-2000 2 000 834 1 049 2 550 1 120 2 621 6CP2-2200 2 200 923 1 108 2 769 1 185 2 846 6CP2-2400 2 400 1 013 1 167 2 990 1 254 3 077 6CP2-2500 2 500 1 045 1 194 3 075 1 284 3 165 -
Module 7 Carriers from 24t to 45t
SMOOTH BLADE WITH REVERSIBLE BOLT-ON COUNTER BLADE (CLBR) + REAR BLADE (LAR)
Thickness 30mmRef Width (mm) ISO capacity (l) Bucket weight (kg) Total weight (kg) 7IP1-2200 2 200 1 158 1 412 3 496 7IP1-2400 2 400 1 270 1 474 3 760 7IP2-2200 2 200 1 700 1 933 4 993 7IP2-2400 2 400 1 870 2 042 5 408 7IP3-2200 2 200 2 100 2 013 5 793 7IP3-2500 2 500 2 396 5 340 9 652
This is an example of realization, all our tools are customizable, find out more.
