Universal ditch cleaning bucket
M1 to M6 Carriers from 2t to 24t

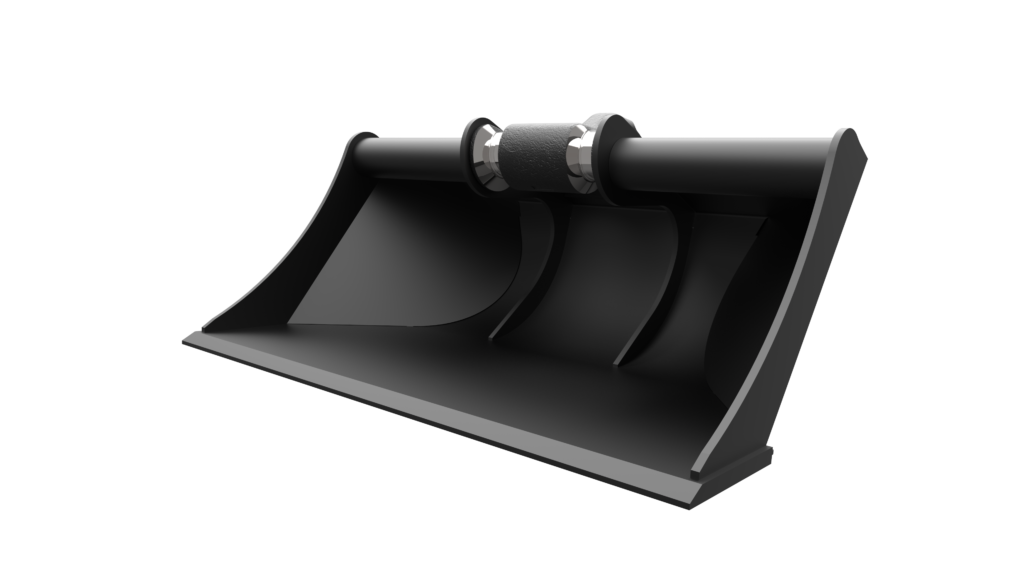

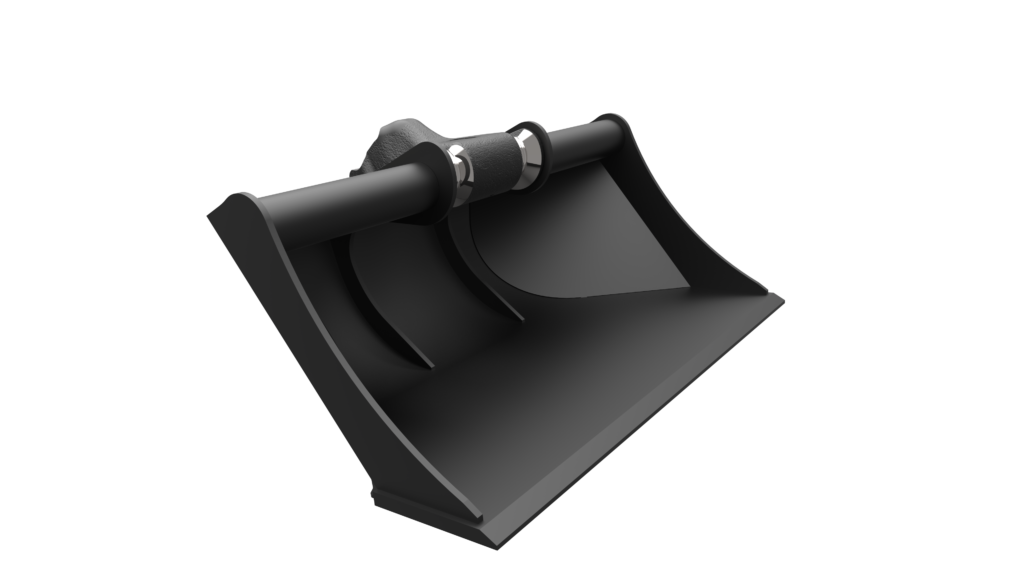

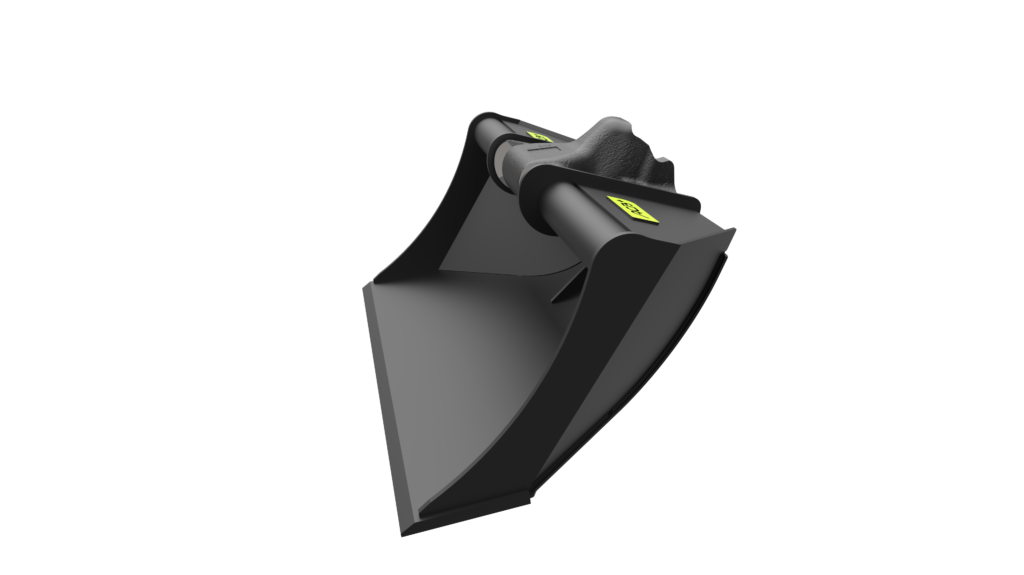

The universal ditching bucket is a scraper bucket specially designed for orientable couplers and tilting rotary scrapers. The bevelled sides avoid bottoming during excavation work and allow working closer to pillars, nozzles and other work site obstacles. They also allow optimum tipping through the bucket corners, when filling trenches for example.
The advanced blade and the flat cutting profile make it the ideal tool for levelling and road and networks construction.
The advanced blade, the flat bottom, the waisted sides and the central strengthening webs make it the ideal tool for levelling and finishing work. It is essential when combined with orientable couplers and tilting rotary scrapers.
Available in systems
Technical data
This is an example of realization, all our tools are customizable, find out more.
| Module | Ref | Width | Capacity | Weight | Weight |
|---|---|---|---|---|---|
| (mm) | ISO (l) | Bucket (kg)* | Total (kg) | ||
| Module 1 Carriers from 2t to 3.5t |
1UP1 | 900 | 90 | 85 | 247 |
| 1000 | 102 | 98 | 282 | ||
| Module 2 Carriers from 3.5t to 5.5t |
2UP1 | 1100 | 190 | 146 | 488 |
| 1200 | 210 | 150 | 528 | ||
| Module 3 Carriers from 5.5t to 7.5t |
3UP1 | 1200 | 300 | 217 | 757 |
| 1400 | 350 | 253 | 883 | ||
| Module 4 Carriers from 7.5t to 10t |
4UP1 | 1100 | 370 | 270 | 936 |
| 1400 | 450 | 350 | 1120 | ||
| Module 5 Carriers from 10t to 15t |
5UP1 | 1500 | 478 | 399 | 1259 |
| 1700 | 542 | 452 | 1427 | ||
| Module 6 Carriers from 15t to 24t |
6UP1 | 1500 | 850 | 847 | 2377 |
| 1600 | 907 | 903 | 2535 | ||
| 1800 | 1050 | 1629 | 3519 | ||
| 1900 | 1108 | 1720 | 3715 |
